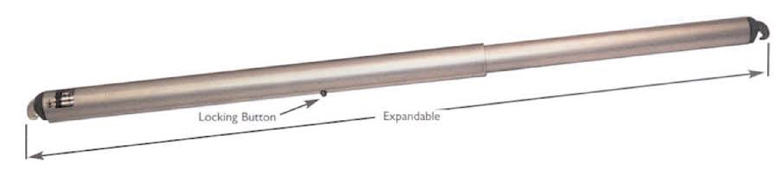

Telescopic Drape Supports

CROSSBARS
  • 1-9/16" diameter outer aluminum tubing.
  • All tubing surfaces have protective clear anodized coating that keeps drapery clean
  • Solid Telescopic Drape Support available
  • Special Order Black Anodized TDS available for an additional cost (call for prices)


Part #

Range

Collapsed
Length
Stops at Primary
Use
TDS23 2' to 3' 2'0" 3' Where shorter drape supports are needed (i.e. masking around poles & columns)
TDS35 3' to 5' 3'0" 5'
TDS47 4' to 7' 4'2" 6' & 7'
TDS58 5' to 8' 5'2" 8'
TDS681 6' to 10' 6'2" 8" & 10' For boothing and backwall applications
TDS712 7' to 12' 7'2" 10' & 12'
TDS8024 8' to 14' 8'2" 10', 12' & 14'
TDS9246 9' to 16' 9'2" 12', 14' & 16' Supporting banner & lighter weight drape or screening
TDS81 8' to 10' 8'0" 10' 3 pc - maximum pole lengths 49"
